The Wirraway Evolution 330 SL - Luxury A Class Motorhome Body

Click here to view more Evolution 330 SL pages :

layout or inside features or motorhome body or storage drawers & service hatches or Restart


Wirraway Evolution 330 Sl Mororhome

The Wirraway A Class Evolution 330 SL is our flagship model and is the new benchmark for Australian Motorhomres it is a brilliant design featuring a full length Slideout Living Room, it's luxurious studio apartment on wheels.

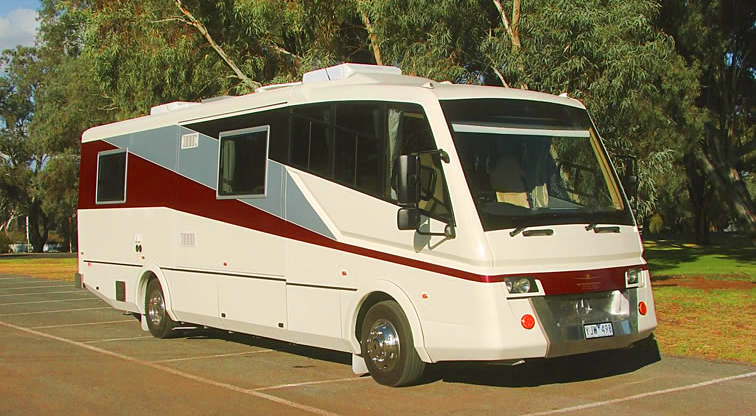

Typical Wirraway 330 SL has a strong presence on the road and is fully coated with high quality TWO PACK epoxy paint
Typical Wirraway 330 SL is constructed on 12mm plywood flooring, Aluminum RHS Box Section Frame Chassis
The Upper Wall Paneling is constructed with Fibreglass and Composite high thermal efficiency Styrofoam / fibreglass vacuum sealed, high strength, fire retardant, rot proof panels. They are ultra strong and easy to clean!
Typical Wirraway 330 SL - Is built on a Mercedes chassis and carries their factory warranty Australia wide!

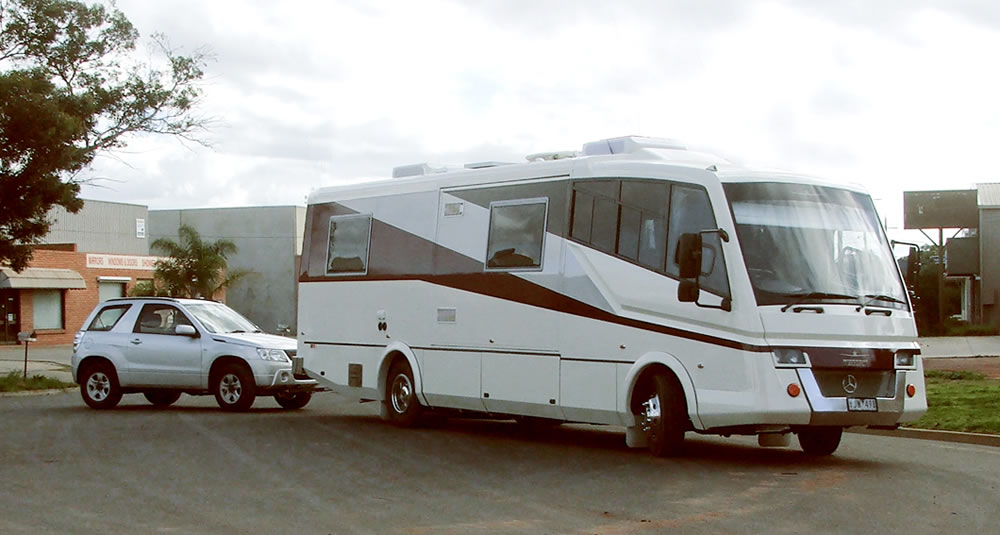

The Wirraway 330 SL- Is setup to tow your SUV and is custombuilt and handmade to suit Australian conditions!



Wirraway's Unique Automatic Storage Drawer System

Wirraway 260 SL Motorhome Showing the slideout room
Wirraway 260 SL Motorhome Showing the slideout room

Key Tab Remote Control & Auto step switch at the entry doorway

7 Station, 4 Button Key Tab Remote Control

Advanced Motorhome Power Management

Wirraway Motorhomes are the exclusive importers and distributors of the

EC 200 & EC51 Control Panels - EC325 PSU & EC155 ( Power Supply Units )

EC 200 Control Panel - EC325 PSU ( Power Supply Units )

These 2 units combined are the most advanced power management system available!

Wirraway 260 SL Motorhome Showing the slideout room

Wirraway 260 SL Motorhome Showing the slideout room

Wirraway's Innovative EC200 Control Panel for Power & Water Tank Management

Digital control panel has an extensive feature . A scrolling menu system displays system information including water levels, battery levels, clock / alarm with event timer.

With the use of new technology the EC200 Power
Control System provides a complete control solution for a wide range of leisure vehicles.
The microprocessor controlled digital system allows the user to control equipment and view / edit system information from a user-friendly control panel that incorporates a liquid crystal display.
The built in ‘intelligence’ prevents over discharge of the vehicle battery, allows greater control of the water system and has a built in alarm clock / event timer to control equipment in your absence.

Wirraway's Innovative EC325 PSU - Power Control Unit

Wirraway 260 SL Motorhome Showing the slideout room

EC325 PSU - Power Control Unit Key Functions

· 325W (~25A) Power Converter - Converts the 230V mains supply into 12v DC power to run the leisure equipment and supply the battery charger.


· Intelligent ‘offline’ Battery Charger - Uses a process of disconnecting the leisure battery from the leisure equipment during the charging process, which allows the battery charger to
charge batteries quicker, recover heavily discharged batteries and achieve a higher final charge level than traditional battery chargers.


· Built-in dual Solar Regulator - Allows the direct connection of a 20 to 100W solar panel without the need for additional components. The dual regulator charges both the vehicle and
leisure batteries simultaneously.


· System Monitor Circuit - Monitors key components within the power supply to ensure optimum operation. A simple ‘traffic light’ indicator shows the power supply status.


· Enhanced Digital Control Panel - With scrolling menu system, battery condition (voltage and current), water tank levels, tank and battery level warnings with battery protect circuit, alarm
clock and programmable event timer.




Typical Installation of the EC325 PSU - Power Control Unit

RV EC325 PSU & EC 200 Power Management Systems

Download the EC325PSU - Instruction Manual

Download the EC325 PSU - EC200 Power Control Unit Brochure

Each Wirraway Motorhome comes with a vehicle care pack to keep your investment up to scratch between your normal Wirraway services



Wirraway Evolution 330 SL "A Class" Model

Click here to view the: Slideshow Picture Gallery

Click here to view more Evolution 330 SL pages :

layout or inside features or motorhome body or storage drawers & service hatches or Restart

You can download any of our Wirraway publications, brochures, specifications, layouts etc from the link below:

Download the Wirraway 330 SL A Class Brochure

Download Body & Drawers Brochure Wirraway 330 SL A Class

Download the Specifications & Layouts Brochure Wirraway 330 SL A Class

Download Wirraway Features Snapshot
